Foil Drive Assist Slim (Base Kit)
The original, most powerful, and most reliable electric foil drive for hybrid foiling.
Delivery Time
3–7 business days. Delivery time varies depending on the destination country.
The Assist Slim is smaller and lighter, with a shorter runtime autonomy, designed for performance foiling. It offers enough power for assisted foiling, while remaining super compact!
This is a Base Kit of a Assist Slim only, with no motor or battery included.
The Foil Drive Assist Slim is the smaller, lighter, performance orientated model, for the ultimate in performance hybrid electric assist foiling. Despite its small size, it offers the plenty of thrust to get you of foil easier and sooner however the smaller batteries do reduce the run time. The Assist Slim is perfect for advanced, high performance riders or wingers/downwinders that do not require lots of battery capacity.
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine:
- Universal Mast Adaptor that suits 99% of foil masts available
- Bluetooth Connectivity to the Foil Drive Mobile App
The Foil Drive Assist Slim is perfectly suited to those just looking for an extra boost to get on foil or to ride smaller boards and foils. The Assist Slim is not suitable for prolongated periods of motor assisted riding, it simply provides the boost to get up on foil and ride more. Advanced Surf and Downwind riders will love the low profile and weight but will need to be very disciplined on the throttle usage. Wing foilers simple do not need the run time usually and will also appreciate the low profile and weight.
NB: Boards with Carbon Tracks may experience connectivity issues. See our External Antenna
DOES NOT INCLUDE BATTERY
DOES NOT INCLUDE A MOTOR
WHAT’S INCLUDED:
BASE KIT LISTING DOES NOT COME WITH
*Choice of Battery with Lipo Bag*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!

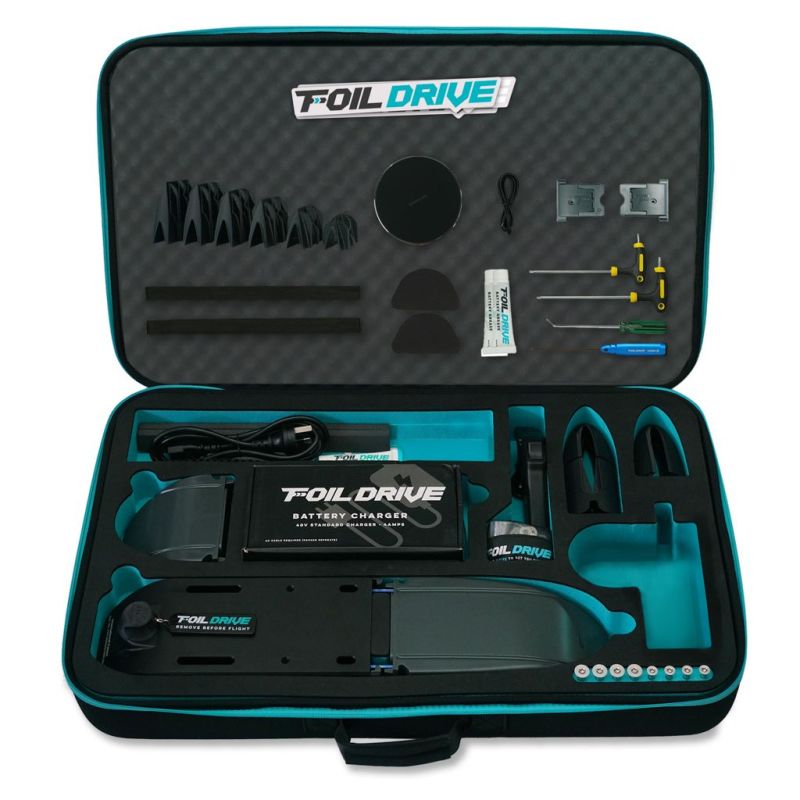

Does include:
Foil Drive Assist Slim Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
Power Lead (AU, US or EU)
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag:
4x M8 Locking Tee Nuts
4x M6 Locking Tee Nuts
4x M34 x 20m Bolts for Locking Tee Nuts 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag:
4x Motor Pod Bolts (M3 x 12mm)
3x Puck Bolts (M3 x 12mm)
3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag:
2x O-Ring Seals - Foil Drive Assist Slim
2x Latch Assembly - Foil Drive Assist Slim
3x Motor Plug Bolts (M3 x 12mm)
4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
2x Latch Locking Bolts (M3 x 16mm)
2x Propeller Bolts (M3 x 30mm)
2x Latch Pivot Bolts (M3 x 45mm)
COMPATIBLE WITH:
Assist Slim
Slim Performance Battery
Slim Endurance Battery (Available early 2024)
Project Cedrus integrated Mast for Gen2
AXIS Integrated Mast for Gen2
TECH SPECS:
Max Thrust: 25.5kg (56.2lbs)
Weight Range: 2.3-2.8 (5.0-6.1lbs)
Dimensions with Longer C Battery: L510 x W250 x H35mm
Dimensions with Short D Battery: L415 x W250 x H50mm
App compatibility
| SKU | FD103 |
|---|---|
| Year | 2026 |
| Manufacturer | Foil Drive |
| State | new |
| Delivery Time | 3–7 business days. Delivery time varies depending on the destination country. |
| EAN | 9361123000294 |
| Color | see image |
